Simulation of Quantum Image Steganography

In today’s digital age, secure transmission of sensitive data is of paramount importance. This project, titled “Secure Data Transmission Using Quantum Image Steganography,” leverages advanced techniques in quantum computing and image processing to develop a robust and secure method for data transmission. The project was conducted as part of the Bachelor of Engineering in Electronics & Communication Engineering at Dayananda Sagar College of Engineering, Bengaluru, under the guidance of Dr. S. Thenmozhi, Associate Professor, ECE Dept., DSCE, Bengaluru.

Introduction

The project focuses on secure data transmission by embedding a quantum secret image into a quantum cover image using advanced steganographic techniques. The combination of quantum computing and image processing enhances security and efficiency in data transmission.

Objectives

  • To develop a secure data transmission method using quantum image steganography.
  • To implement quantum image representation and scrambling techniques.
  • To ensure high visual quality and payload capacity for the stego-image.

Methodology

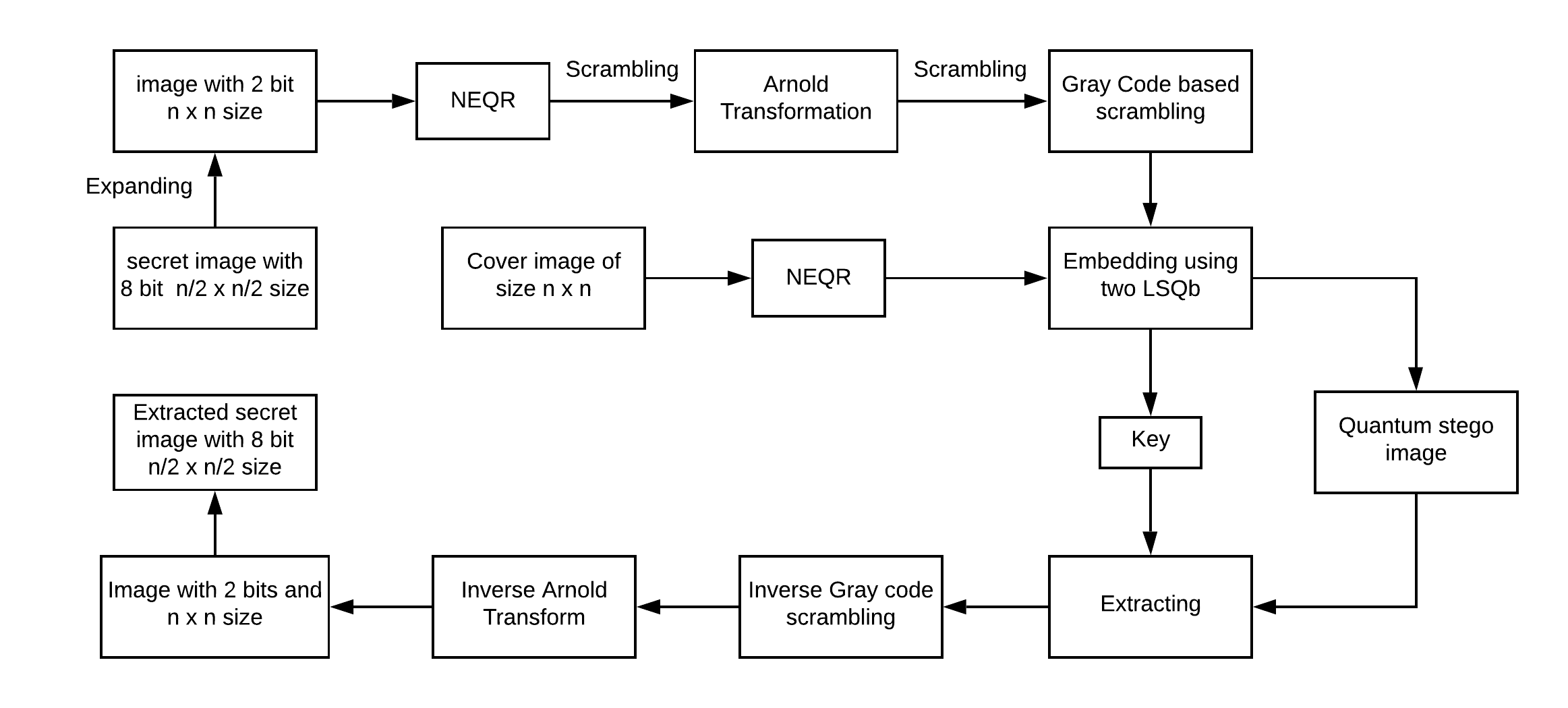

Overview of the project methodology.

The project methodology is divided into several key phases:

  1. Quantum Image Representation: Utilizing the Novel Enhanced Quantum Representation (NEQR) method.
  2. Image Scrambling: Implementing Arnold and Fibonacci image scrambling techniques for encrypting the secret image.
  3. Embedding: Embedding the scrambled quantum secret image into the quantum cover image using two least significant qubits (LSQb).
  4. Extraction: Extracting and descrambling the secret image from the stego-image using inverse transformations.

Tools

  • MATLAB: Used for simulation and implementation of the proposed steganography scheme

Results and Discussion

Visual Quality The proposed scheme maintains high visual quality of the stego-image, as indicated by Peak Signal-to-Noise Ratio (PSNR) values ranging between 42 and 43 dB, ensuring that the alterations are imperceptible to the naked eye.

Payload Capacity The scheme supports a payload capacity of 2 bits per pixel, providing sufficient space for embedding the secret image while maintaining the integrity of the cover image.

Security The use of quantum scrambling techniques significantly enhances the security of the embedded data, making it resistant to common steganalysis attacks.

Comparison The proposed scheme demonstrates superior performance in terms of visual quality and payload capacity when compared to traditional steganography techniques.

Conclusion and Future Work

This project successfully demonstrates a novel approach to secure data transmission using quantum image steganography. Future work may involve exploring more efficient quantum algorithms and extending the methodology to other types of multimedia data.

For more detailed information on the project, feel free to reach out to me.
